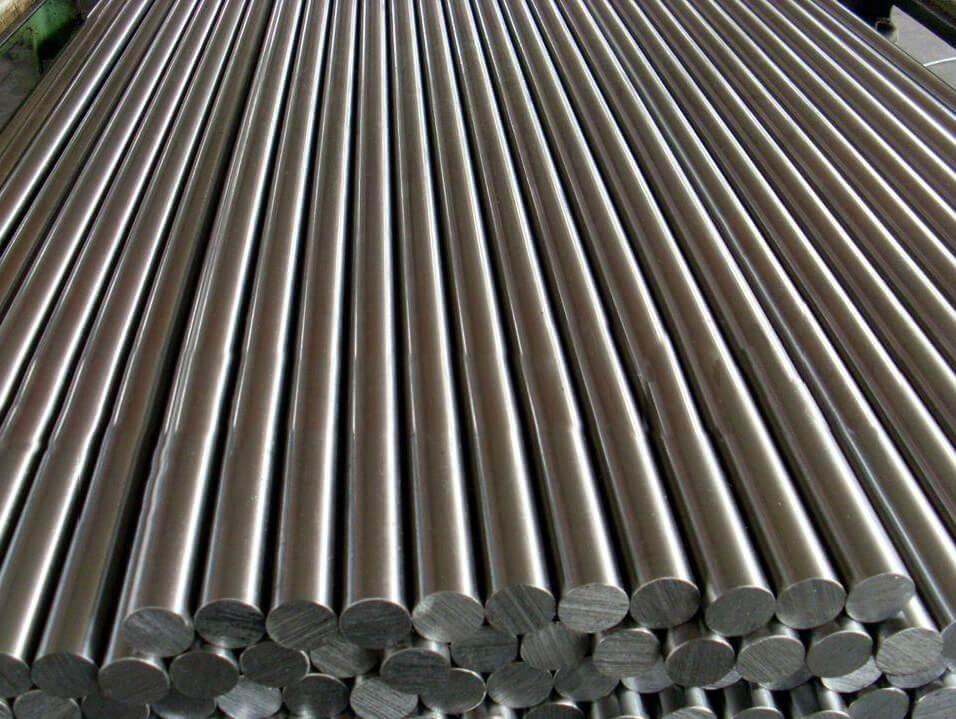

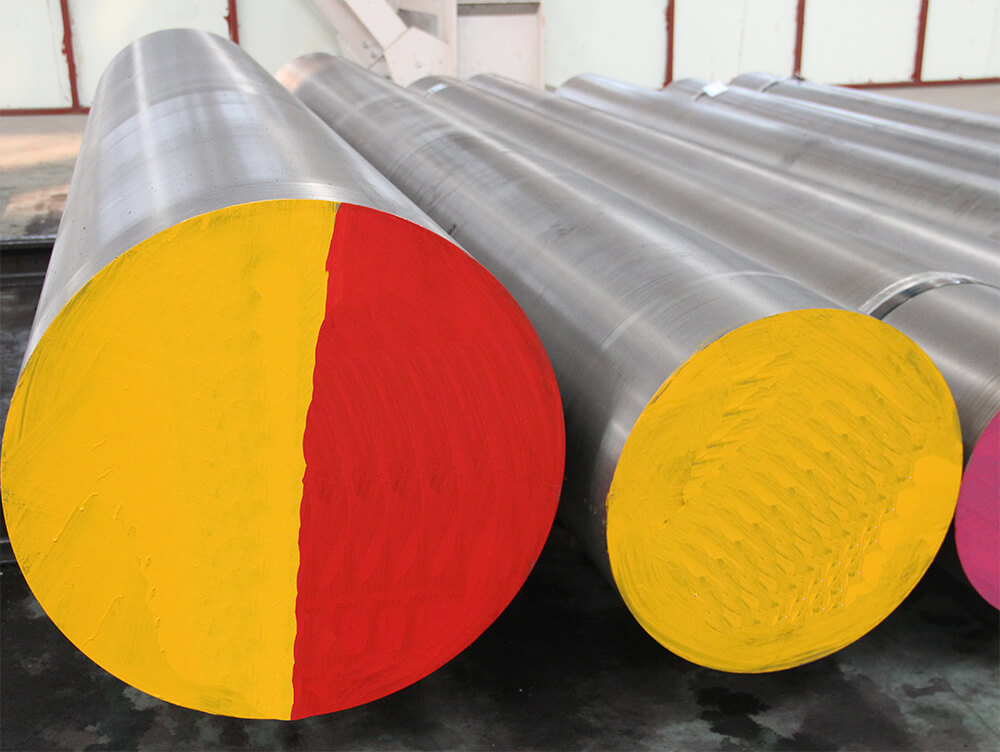

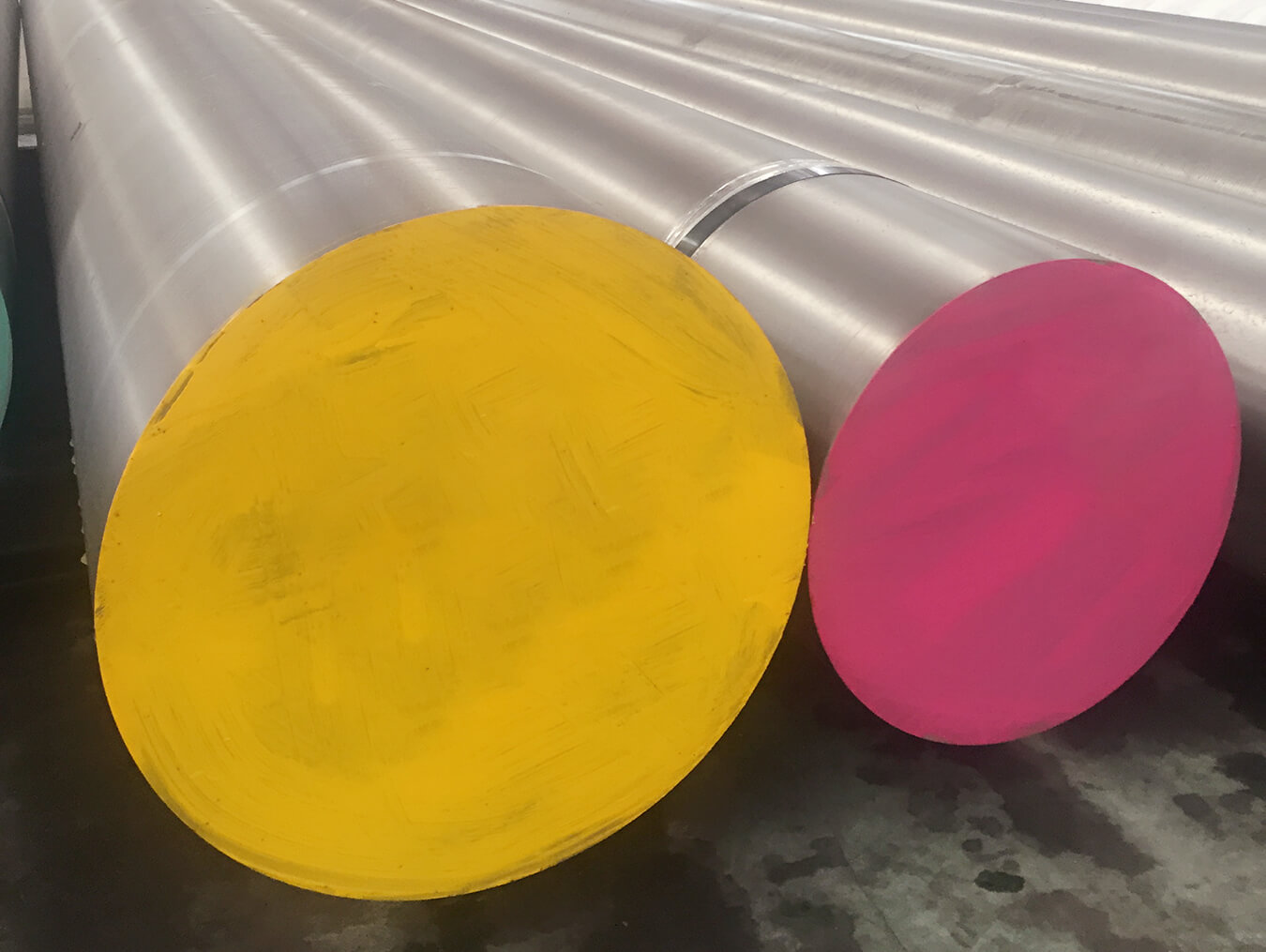

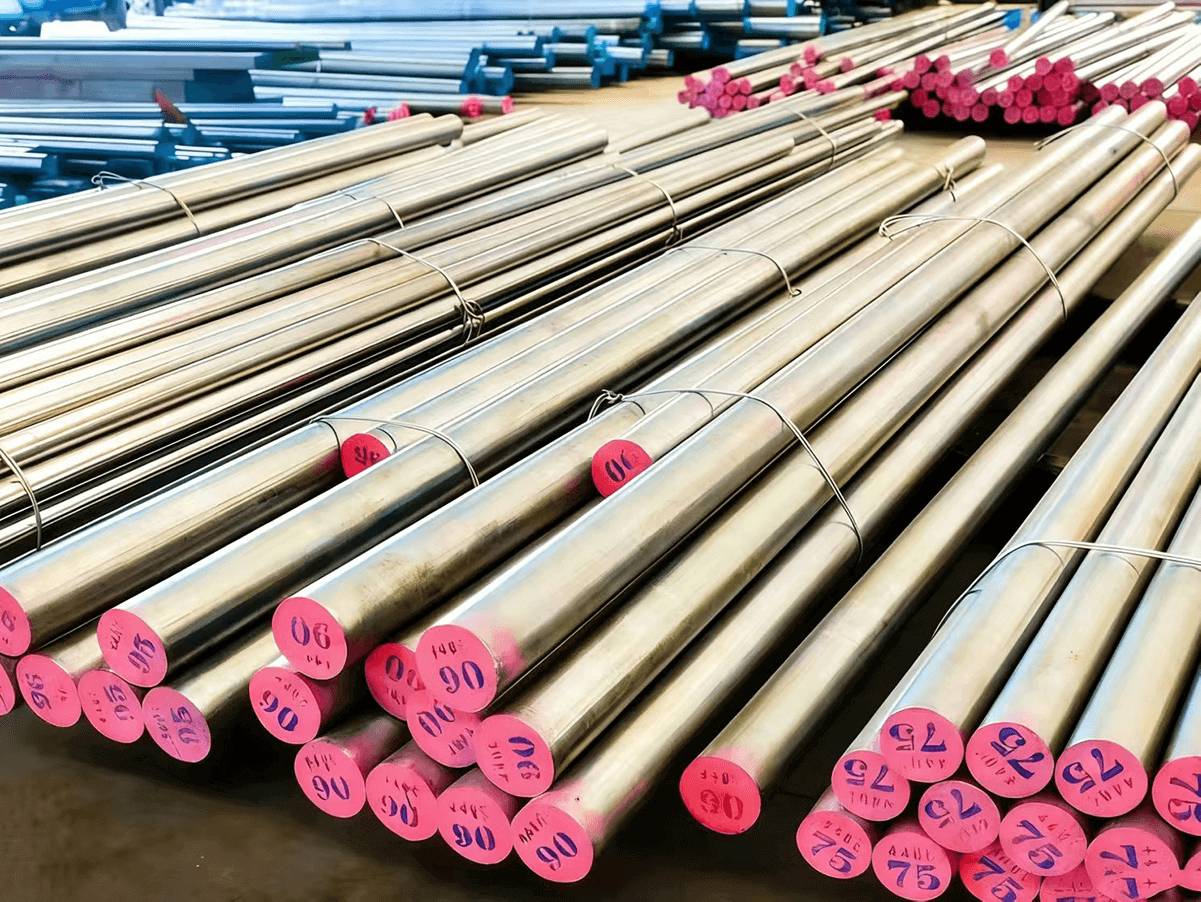

Tool Steel Round Bar
Grade:1.2344,1.2343,1.2379,SKD11,SKD61,1.2842,1.2080,1.2311,1.2312…
Surface: Machined
Hot Work Tool Steel
1.Size Range: 16-450mm
2.Supply Condition: Hot Rolled/Forged, Annealed, Machined Surface
3.Characteristics: Excellent heat check resistance, wear resistance, heat crack resistance at elevated temperatures
4.Applications: Hot forging die, extrusion die and die casting mold
Cold Work Tool Steel
1.Size Range: 16-400mm
2.Supply Condition: Hot Rolled/Forged, Annealed, Machined Surface
3.Characteristics: Excellent wear resistance, low dimensional change, high toughness
4.Applications: Cold press die, Shear Knives , Punch & Roll

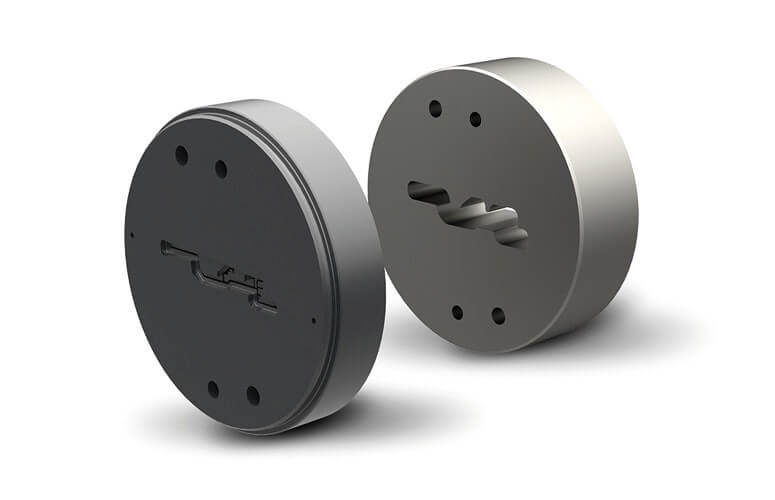

Plastic Mould Steel
1.Size Range: 16-500mm
2.Supply Condition: Hot Rolled/Forged, Annealed/QT, Machined Surface
3.Characteristics: Excellent workability and mirror finish grade, uniform mechanical properties, plastic mold for refrigerators parts, automobile bumpers
4.Applications: Plastic mold steel with ultra mirror surface for cellphone cases, automobile headlamps
|
Steel Grade Equivalency Table |
|||||
|
DIN |
ASTM |
JISS |
UDDEHOLM |
BOHLER |
|
|
Hot Work Tool Steel |
1.2344 |
H13 |
SKD61 |
ORVAR 2M |
W302 |
|
1.2365 |
H10 |
||||
|
1.2367 |
|||||
|
1.2343 |
H11 |
VIDAR 1 |
W300 |
||
|
1.2714 |
ALVAR14 |
W500 |
|||
|
1.2329 |
ALVAR |
||||
|
Cold Work Tool Steel |
1.2510 |
O1 |
SKS3 |
ARNE |
|
|
1.2842 |
O2 |
||||
|
1.2363 |
A2 |
RIGOR |
|||
|
1.2080 |
D3 |
SKD1 |
|||
|
1.2379 |
D2 |
SKD10 |
SVERKER 21 |
K110 |
|
|
SKD11 |
|||||
|
1.2436 |
D6 |
SVERKER 3 |
|||
|
Plastic Mould Steel |
1.2311 |
P20 |
UHB2311 |
M201 |
|
|
1.2312 |
P20+S |
HDLDAX |
M200 |
||
|
1.2738 |
P20+Ni |
IMPAX SUPREME |
M238 |
||
|
1.2316 |
M300 |
||||
|
1.2083 |
420MOD |
STARVAX |
M310 |
||
|
1.2767 |
GRANE |
K600 |
|||
