Tool Steel Block
Grade:1.2344,1.2343,1.2379,SKD11,SKD61,1.2842,1.2080,1.2311,1.2312…
Surface: Machined/Black
Hot Work Tool Steel
1.Size Range: Thickness 60-400mm X Width 100-1500mm
2.Supply Condition: Forged, Annealed, Black Surface/Machined Surface
3.Characteristics: Excellent heat check resistance, wear resistance, heat crack resistance at elevated temperatures
4.Applications: Hot forging die, extrusion die and die casting mold
Cold Work Tool Steel
1.Size Range: Thickness 60-300mm X Width 100-1000mm
2.Supply Condition: Forged, Annealed, Black Surface/Machined Surface
3.Characteristics: Excellent wear resistance, low dimensional change, high toughness
4.Applications: Cold press die, Shear Knives , Punch & Roll

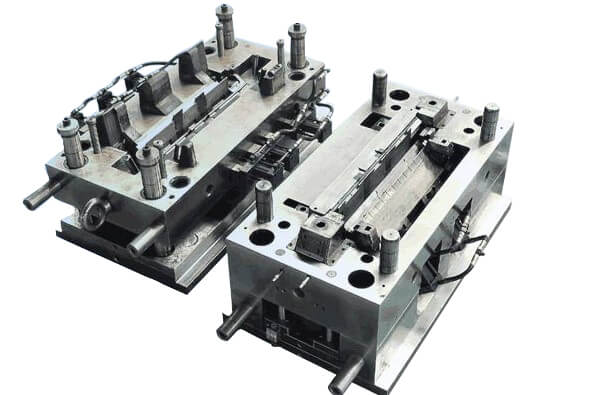

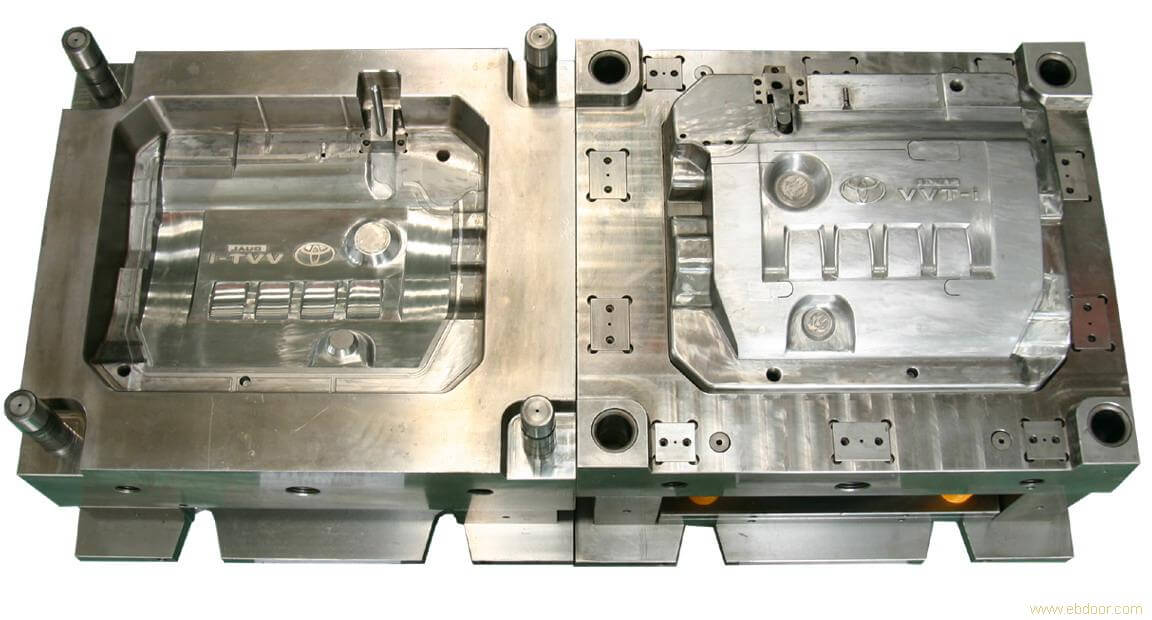

Plastic Mould Steel
1.Size Range: Thickness 60-400mm X Width 100-2000mm
2.Supply Condition: Forged, Annealed/QT, Black Surface/Machined Surface
3.Characteristics: Excellent workability and mirror finish grade, uniform mechanical properties, plastic mold for refrigerators parts, automobile bumpers
Applications: Plastic mold steel with ultra mirror surface for cellphone cases, automobile headlamps
Steel Grade Equivalency Table | |||||
DIN | ASTM | JISS | UDDEHOLM | BOHLER | |
Hot Work Tool Steel | 1.2344 | H13 | SKD61 | ORVAR 2M | W302 |
1.2365 | H10 | ||||
1.2367 | |||||
1.2343 | H11 | VIDAR 1 | W300 | ||
1.2714 | ALVAR14 | W500 | |||
1.2329 | ALVAR | ||||
Cold Work Tool Steel | 1.2510 | O1 | SKS3 | ARNE | |
1.2842 | O2 | ||||
1.2363 | A2 | RIGOR | |||
1.2080 | D3 | SKD1 | |||
1.2379 | D2 | SKD10 | SVERKER 21 | K110 | |
SKD11 | |||||
1.2436 | D6 | SVERKER 3 | |||
Plastic Mould Steel | 1.2311 | P20 | UHB2311 | M201 | |
1.2312 | P20+S | HDLDAX | M200 | ||
1.2738 | P20+Ni | IMPAX SUPREME | M238 | ||
1.2316 | M300 | ||||
1.2083 | 420MOD | STARVAX | M310 | ||
1.2767 | GRANE | K600 | |||
